Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-3300/4300/5300/6300/7300/8300/9300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 220000--420000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 1-3 months
Payment Terms: T/T
Supply Ability: 3 sets per month
Name: |
HDPE 30 Micron Geotextile Fabric Making Machine Extrusion Line Geomembrane Making Machine |
Raw Material: |
High-density Polyethylene Resin |
Thickness Of Film: |
50mircometer--250mircometer |
Width: |
Flexible Width 3000mm--9000mm |
Total Power: |
800kw--1600kw |
Size Of Machine: |
26mx13mx5m |
Capacity: |
600--1200kg/h |
Raw Material Feeding Device: |
Automatic Feeding Raw Material Device |
Key Points: |
J-times T-die;Siemens PLC Control System,trimming Recycling System |
After-sales Service: |
Rovided: Engineers Available To Service Machinery Overseas |
Name: |
HDPE 30 Micron Geotextile Fabric Making Machine Extrusion Line Geomembrane Making Machine |
Raw Material: |
High-density Polyethylene Resin |
Thickness Of Film: |
50mircometer--250mircometer |
Width: |
Flexible Width 3000mm--9000mm |
Total Power: |
800kw--1600kw |
Size Of Machine: |
26mx13mx5m |
Capacity: |
600--1200kg/h |
Raw Material Feeding Device: |
Automatic Feeding Raw Material Device |
Key Points: |
J-times T-die;Siemens PLC Control System,trimming Recycling System |
After-sales Service: |
Rovided: Engineers Available To Service Machinery Overseas |
1. It is widely used in producing PPR, PE, PP water-supply/floor heating/electric pipes, this pipe will install easy, low price and green, light weight, safe and clean, resistance heat, corrupt, save heat and long usage.
2. With one or two other extruder, this single layer pipe production line can also produce two or three or more layers pipe.
3. The multi-layer pipe production line is very popular now, take the 3-layer pipe production line for example, the inner and outer layers use new raw material, and the middle layer uses recycled plastic(+ fiber glass material), this design highly increases the strength and tensile of pipes, at the same time lower the production cost.
PE Geomembrane/Waterproof Sheet
It is for waterproofing usage in industrial&civil buildings including the green roof,flat roof and the sloping roof.Underground waterproof:reservoir,dam,pool.Waterproof usage in Tunnel,grain depot,artificial engineering,landfill,artificial lake.

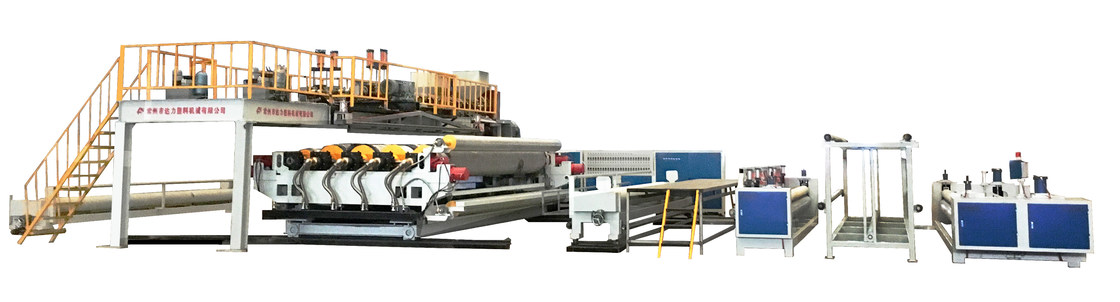

Extra-width Geomembrane/Waterproof Sheet Extrusion Line
Refering to the special request of waterproof and geomembrane industry,JWELL launched a high capacity extrusion line with low shear&energy comsumption.The exclusive design of calender frame and roller structure are helpful to higten the performance of extra-width geomembrane and precision of thickness.
Main technical parameters:
Products |
Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet |
|||||||
Thickness range(mm) |
0.1-3.0mm | |||||||
T-die size(mm) |
2300 | 3300 | 4300 | 5300 | 6300 | 7300 | 8300 | 9300 |
Max working width(mm) |
2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 |
Cooling Method |
Circulating water cooling |
